Annke 4Mp Solar Security Cameras With Wireless Nvr Kit
Annke 4Mp Solar Security Cameras With Wireless Nvr Kit
Couldn't load pickup availability

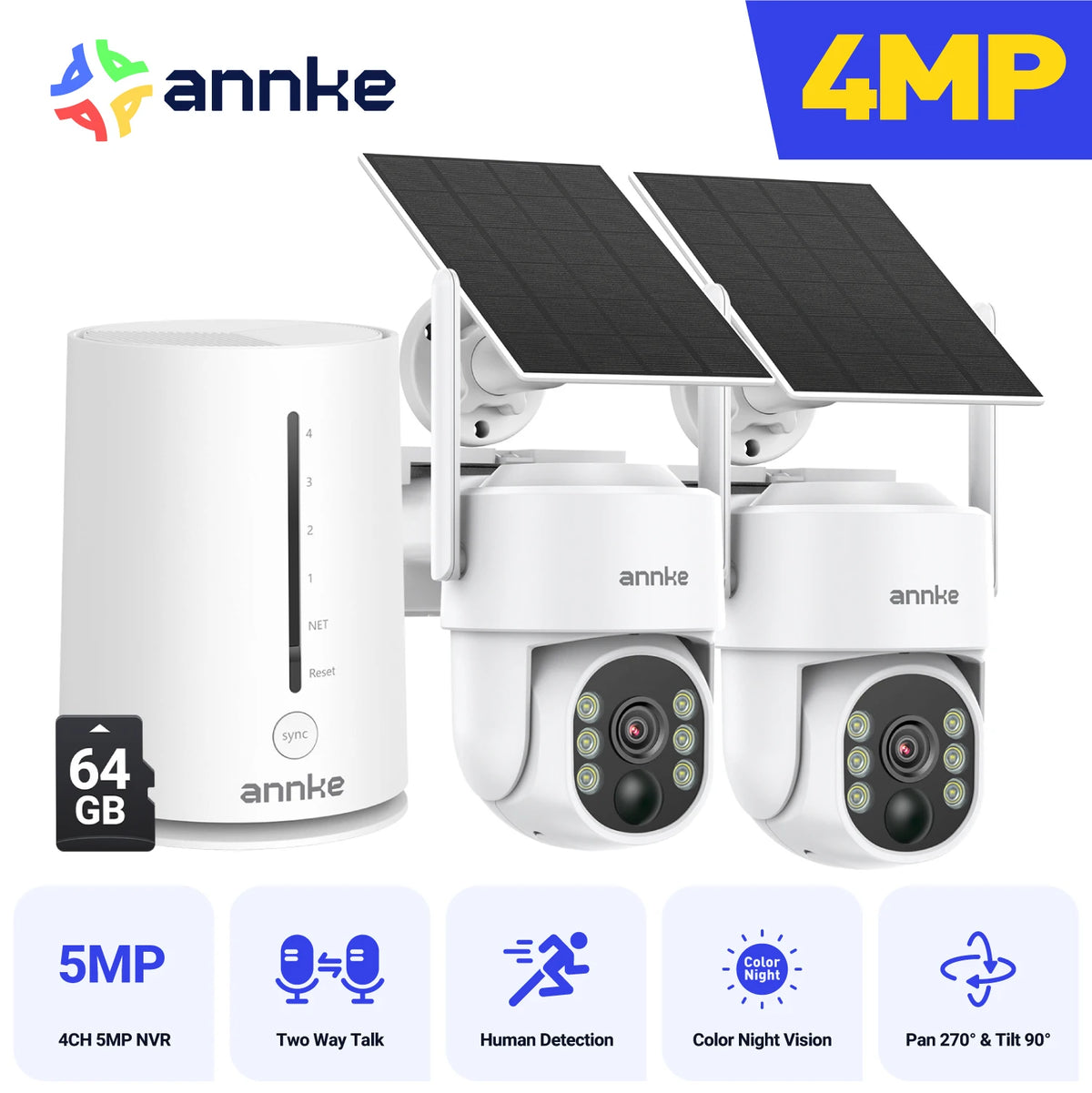

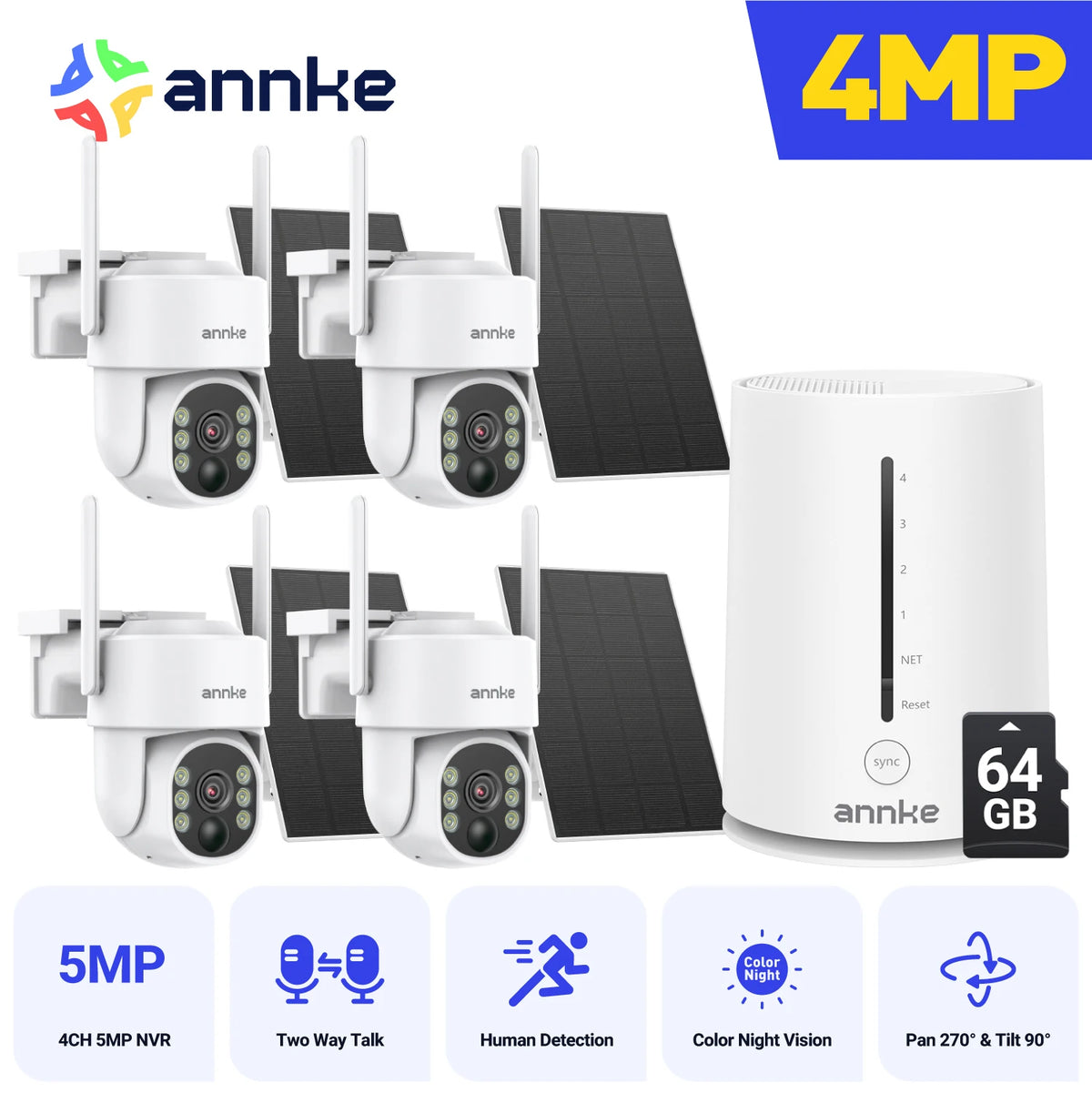

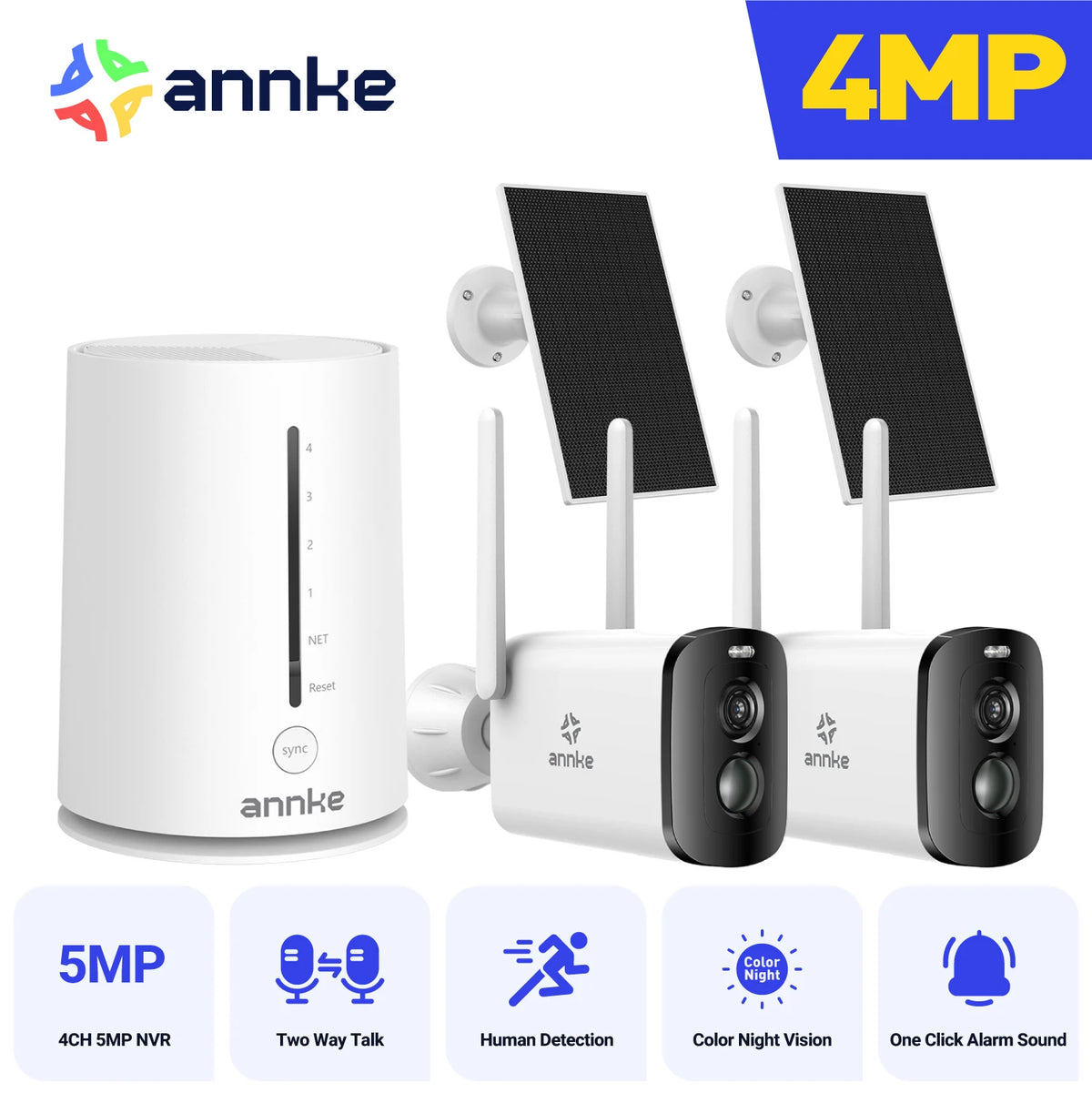

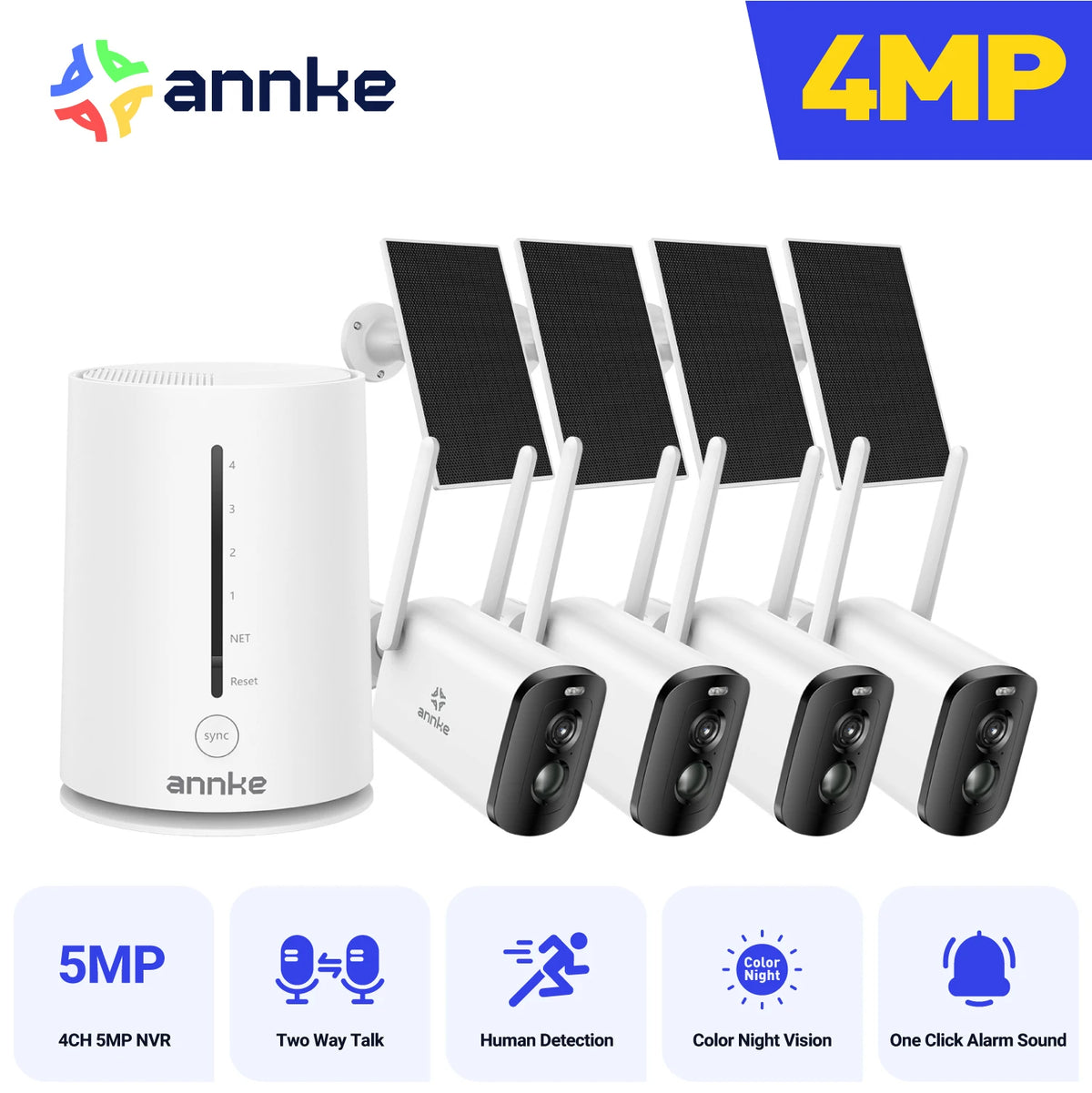

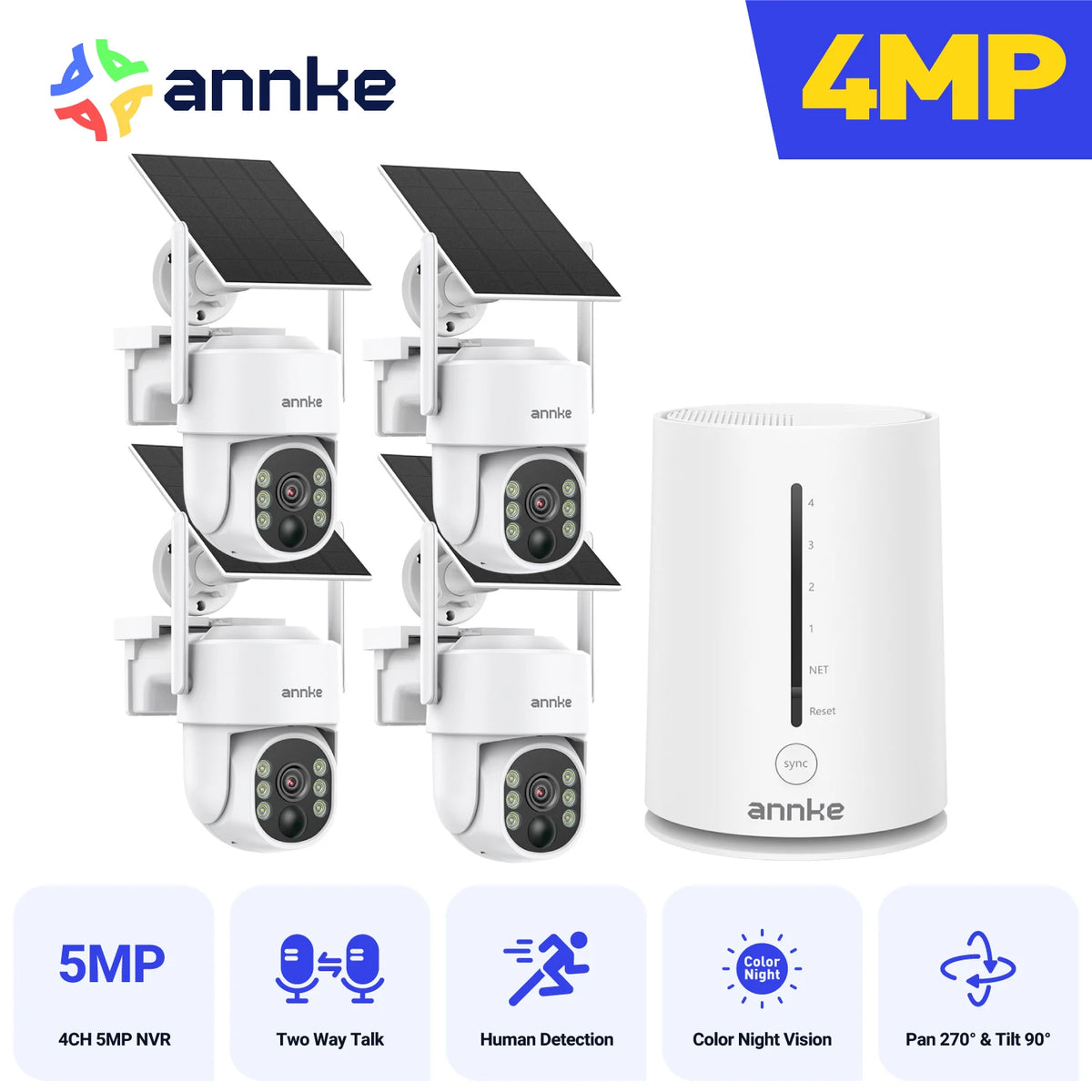

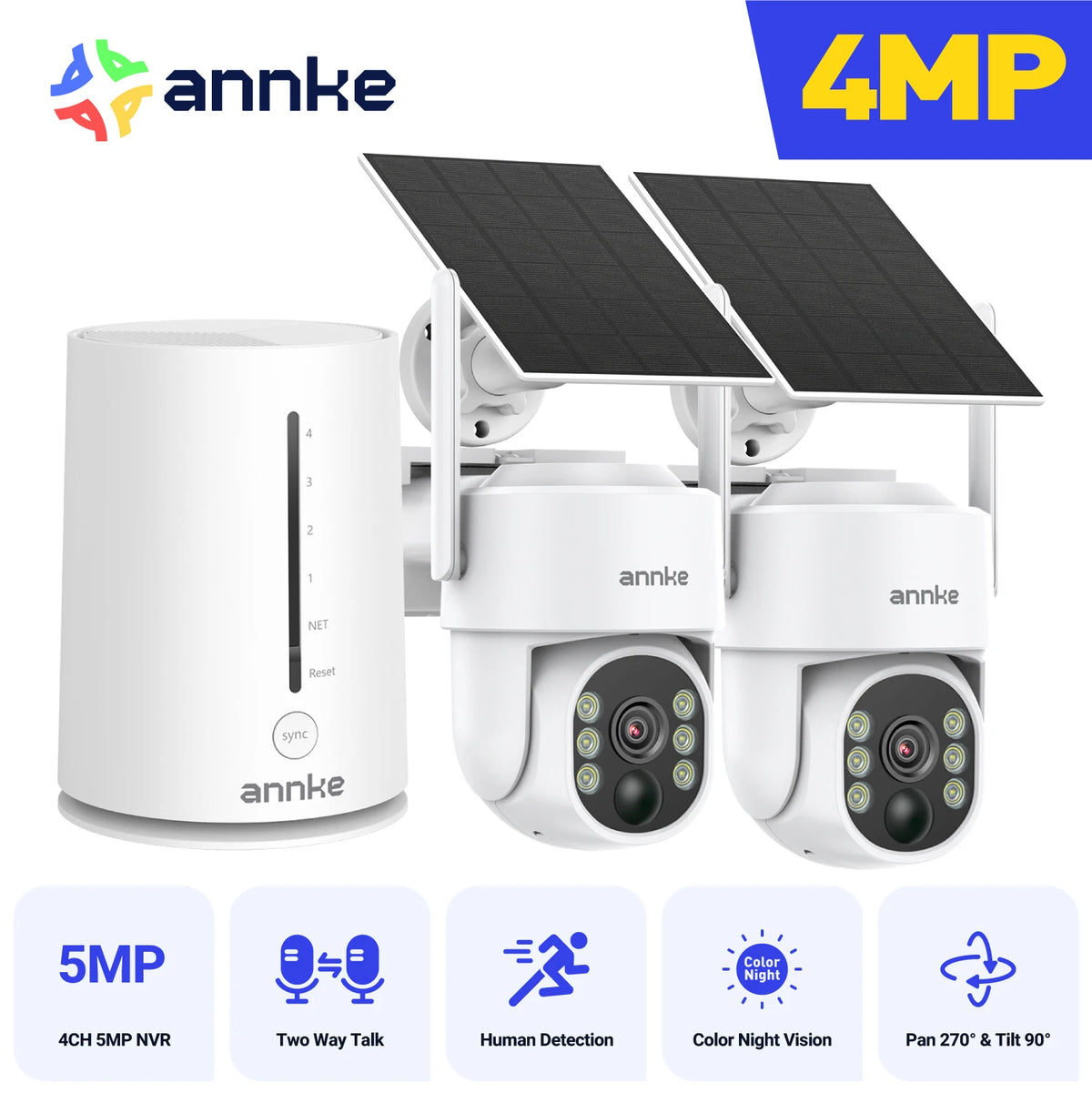

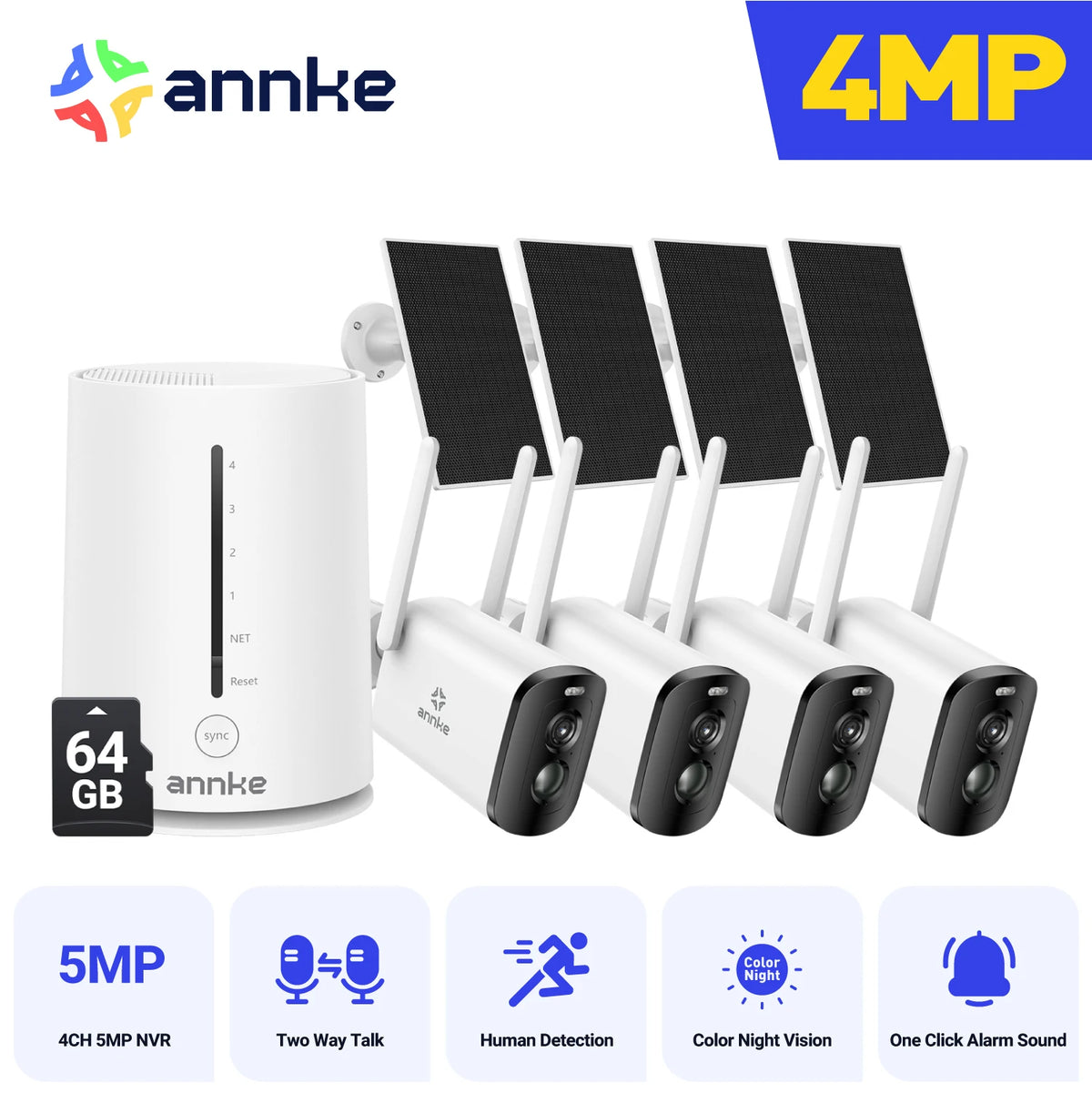

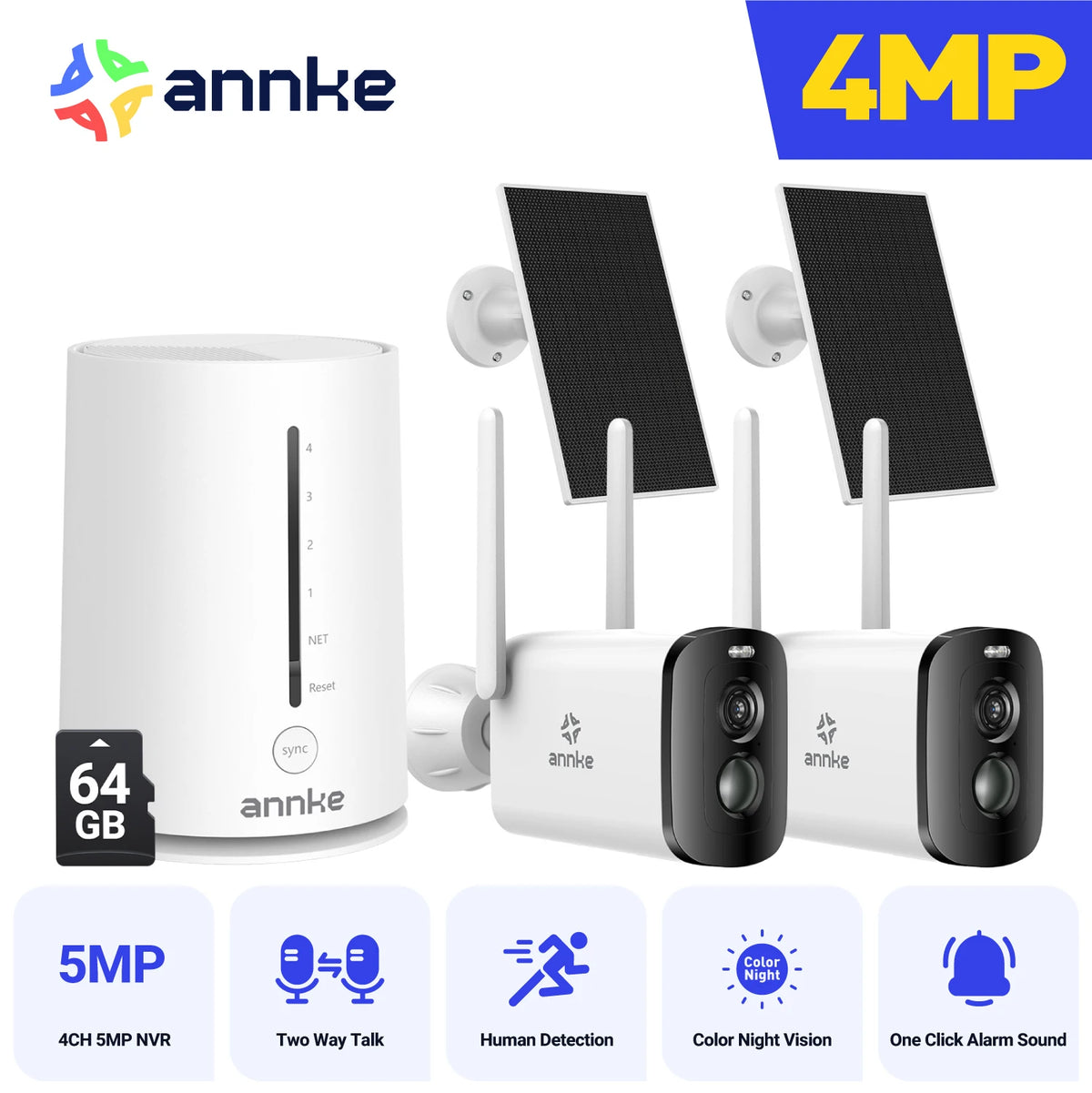

You remove installation barriers by securing your space wirelessly through 4MP solar cameras that pair directly with a 4-channel NVR unit.

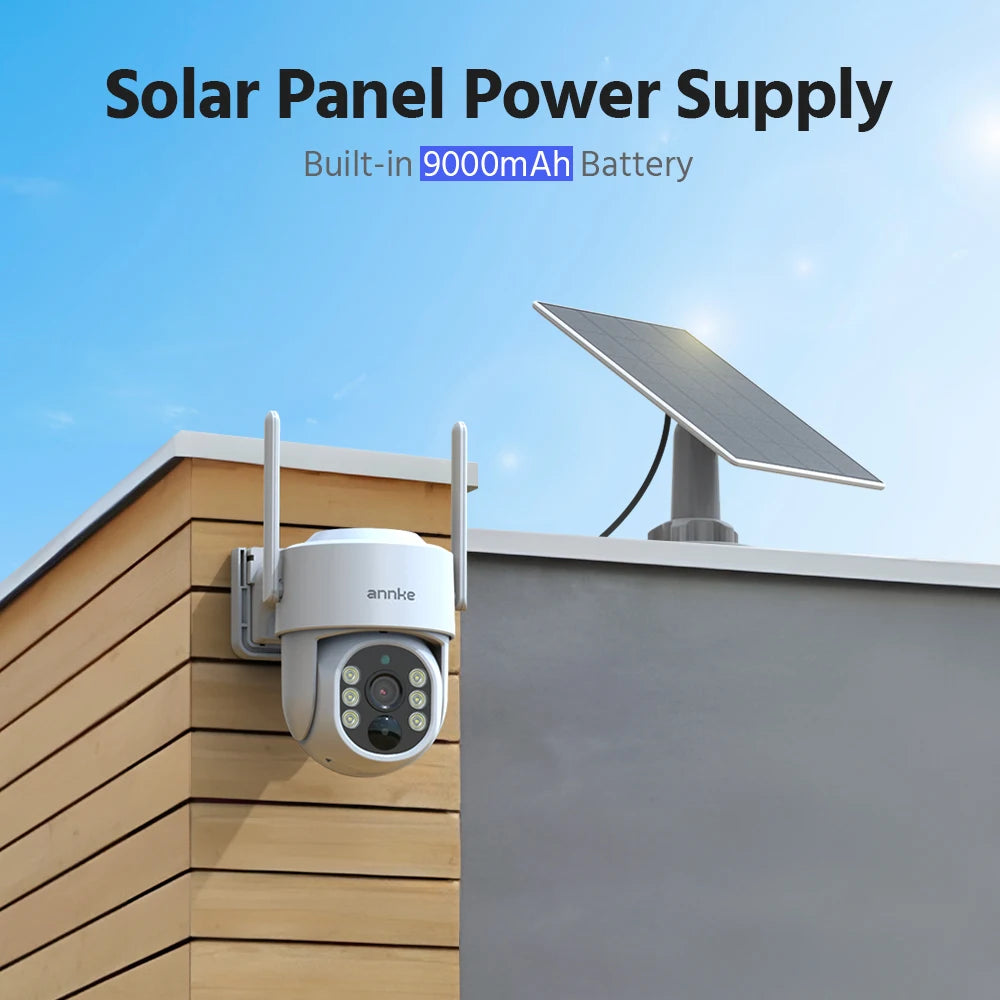

- You maintain constant operation using built-in batteries and position the rotating mount to capture direct sunlight for steady charging.
- You steer the remote pan and tilt motor to erase blind spots, then read fine details using activated spotlights and 15-meter infrared illumination.
- You trigger precise phone alerts only for verified human movement, then respond through duplex audio or blast the integrated siren and strobe warning.
- You save critical clips to a local micro SD card up to 512GB, upload footage to cloud accounts, or mirror feeds into Alexa routines.
N54WHF | ||
Video Compression |
H.264+ |
|
IP Video Input |
4CH Wireless |
|
IP Video Output |
APP，PC Client |
|
Audio Output |
Speaker |
|
Max Recording Resolution |
Up to 5M(2880x1620) |
|
Max Playback Resolution |
Up to 5M(2880x1620) |
|
Max Playback Channel |
1CH |
|
Storage |
Micro SD Card |
Up to 512GB |
|
Wireless antenna |
Built-in，IEEE802.11b/g/n/ac/ax |
Network Interface |
Wireless+RJ45(10/100M) |
|
Wireless Standards |
2.4G&5.8G dual-band，IEEE 802.11.ax |
|
General |
Housing |
Plastic |
Operating Power |
DC5V |
|
Power Consumption |
5W |
|
Working Temperature |
32 °F ~ 104 °F /0 °C ~ 40 °C |
|
Dimensions(W x H x D) |
95×95×130mm |
|
Weight |
240g |
|
IP Camera 9000mAh battery I81BM | ||
Camera |
Video Resolution |
4MP(2560x1440@15fps) |
Image sensor |
1/3.2" Progressive Scan CMOS |
|
Video compression |
H.264+ |
|
Audio Compression |
G.711A |
|
Audio Intput |
Microphone |
|
Audio Output |
Speaker |
|
Lens |
4mm |
|
Angle of View |
70° |
|
Number of Infrared/Color LEDs |
6 |
|
Infrared and full color Distance |
Infrared 15m/Color 8m |
|
Built-in battery |
3.7V/9000mAh 2pcs 21700 |
|
PTZ control |
Horizontal 270°, Vertical 90° |
|
PIR Sensor |
10 meters |
|
Wireless antenna |
1 Ports(2.4G&5.8G dual-band，IEEE 802.11.ax) |
|
General |
Housing |
Plastic |
Operating Power |
DC5V，Type-C Interface |
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
Mount Option |
Wall mount |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP65 |
|
Dimension (L x W x H) |
||
Weight |
||
Camera |
Sensor |
1/3" CMOS |
Focal Length |
4 mm |
|
Aperture |
F2.0 |
|
Optical Field of View |
102.9° diagonal, 86.4° horizontal, 46.1° vertical |
|
Minimum Illumination |
0.1 lux |
|
IR distance |
Night visibility up to 15m, 10M Color Nightvision |
|
Audio |
Input |
Built-in microphone |
Output |
Built-in speaker |
|
Two-way Audio |
Full duplex |
|
Audio Compressing |
AAC |
|
Video |
Video Compressing |
H.264, H.265 |
Lighting Frequency |
50 Hz, 60 Hz |
|
Frame Rate |
15 fps |
|
Maximum Resolution |
2560 × 1440 |
|
Light Source For Night Vision |
White light or infrared LED switchable |
|
Network |
Wireless Standard |
2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) |
Protocols Supported |
TCP/IP, UDP/IP, DHCP, RTMP, MUTP |
|
IP Address Type |
Dynamic IP address |
|
Recording |
Recording Method |
Alarm triggered recording, and manual recording |
Video Storage |
Cloud storage, local Micro SD card (up to 128 GB), and mobile phone memory |
|
Function |
AI Function |
Human detection |
Wake-up Method |
PIR body induction wake-up and remote wake-up |
|
Alarm Notification |
Alarm push by mobile app, white LED flashing and alarm sound warning |
|
Indicator |
RGB tri-color LED |
|
Battery |
Capacity |
5200 mAh |
Removability |
Unremovable |
|
Charging Voltage |
5 V ±5% |
|
Charing Current |
1.5 A |
|
Protection |
Over-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature |
|
Power Consumption |
Standby |
1.48 mW |
Daytime Working |
0.95 W |
|
Nighttime Working |
1.54W |
|
Interface |
Power |
TYPE-C |
Storage |
Micro SD card |
|
Key |
Power key and reset key |
|
Installation |
Installation Method |
Wall mount, ceiling mount,desktop |
Bracket Type |
1/4'' universal screw hole |
|
Environment |
Dustproof and Waterproof |
IP65 |
Operating Temperature |
-10℃~ 45℃ |
|
Storage Temperature |
-20℃~ 60℃ |
|
Prodoct Dimension |
Dimension |
54(L)mm x 118(W)mm x 81mm(H) (without bracket) |
Bare Weight |
330 g |
|
Material |
ABS + PC |
|
Color |
White |
